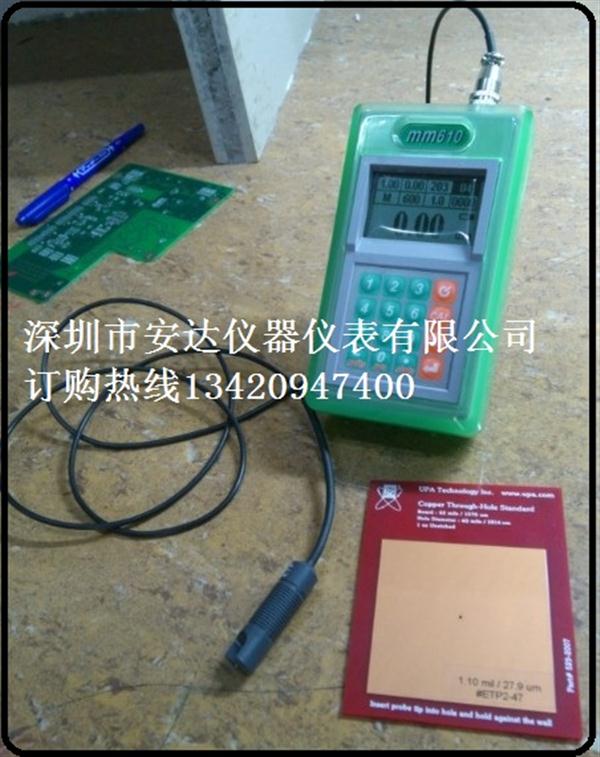

Handheld through hole copper thickness gage mm610

Milum mm610 is rechargeable battery
operated handheld PCB through hole
copper thickness measuring gage.
Measures over 30 mil PCB board
thickness and above 35mil hole
diameter through hole Copper plated
thickness of etched and before etched
boards.
Unique design and simple operating
display allows the user to understand
everything fully at a glance.
Eddy current principle
Multifunction clear display, simple to operate
Backlight bright LCD display
Compensation feature to meet product standard
Set High and Low limits to detect when out of
specification
Simple to use and convenient to carry around
Measures in mil or um
Single standard Calibration
Quick push and pull probe connector design.
Replaceable probe tip design
USB interface for computer download
Rechargeable long life battery, economic and
environmental
Optimum design using simple and friendly
Operating interface


Specification
Measuring range 0.04~8mil (1~200um)
Accuracy +/- 3% (according to the standard)
Resolution 1- 3 digits ( fixed )
Minimum hole diameter 35mil (0.9mm)
Minimum board thickness 30mil. (0.75mm)
Memory 20,000 readings
Dimension (L) 130mm /(w) 70mm /(H) 30mm
Export interfaces USB
Weight 210 grams
Battery 9 V rechargeable battery, AC adapter included
Life-span of the battery Can be used again after recharging
