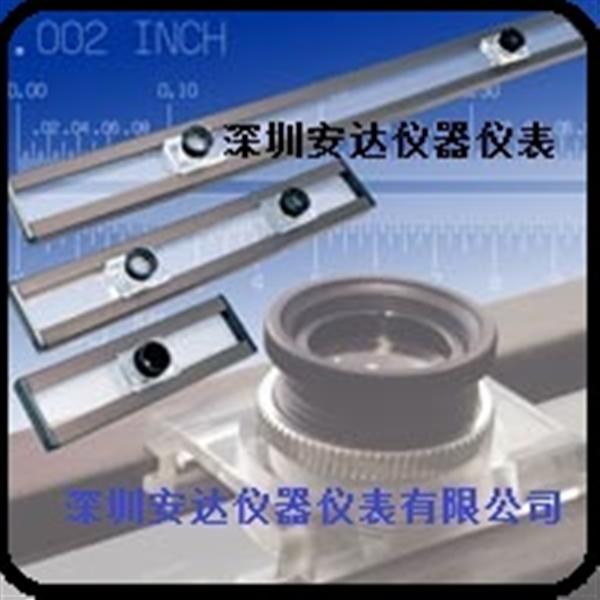

The MicroRule English/Metric patterns are formed in very durable, double layer chrome deposited on select .220”/5.6mm thick soda lime glass. The glass is fully supported by low reflection extruded aluminum side rails with end caps to retain the magnifiers and protect the glass during shop use.
Dimensions and tolerances of each MicroRule are:
- Scale division of 0.005”/0.10mm
- 25” pattern length and an overall length of 27.85”
- Line to line accuracy of ±0.0001”
- Overall accuracy of ±0.0003”
Each MicroRule includes:
- Two (2) 12X magnifiers
- Carrying case for protection during storage
In addition to the standard “Certificate of Accuracy”, any MicroRule can be individually calibrated to provide “Certified Calibration” Traceable to N.I.S.T.
