SMD-V離子污染測試儀為美國2015年新款型號

SCS在多種工業領域（包括印制電路板、生產和醫藥工業）為非破壞性過程控制測試提供全范圍的離子測試系統。SCS儀器集團離子污染測試系統是一個設計為快速、準確離子污染清潔度測試的模組組裝系統。每一個模組使用超凈酒精/水萃取介質和專利的動態方式來快速、無破壞性測試產品樣品。

Ionograph SMD-V模組有一臺個人電腦Ionograph SMD-V指令模組操縱來測定是否符合IPC-650和其他工業標準的清潔度需要。他們可用于測量輸入電子元器件和電路板的品質并且可以評估助焊污染和監視表面清潔度。

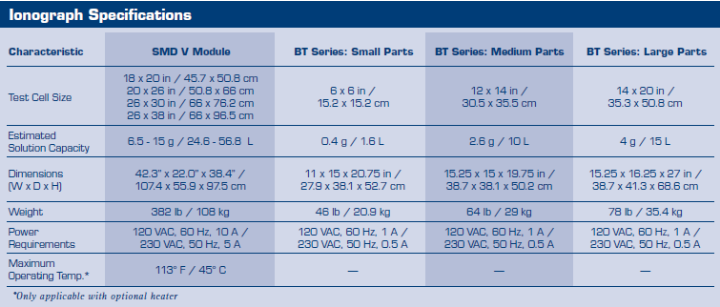

SMD-V是最多用的測試模組。此模組具有18u‘‘*20u‘‘、20u‘‘*26u‘‘、26u‘‘*30u‘‘和26u‘‘*38u‘‘的測試腔室尺寸，可以依據負載需要操作于部分或全溶液模式。浸入式攪拌噴嘴和溶液加熱器使這種大型測試模組具有卓越的敏感度，高效的工作和輕松準確的測試超細間距元器件的能力。依據ANSI/J-STD001的標準。

SCS Ionograph Test Systems
SCS offers a full range of capacity and control to meet the needs of any lab or manufacturer. Designed for fast and accurate ionic contamination cleanliness testing, SCS Ionographs:
? Determine the cleanliness of electronic components, assemblies with SMT devices, and bare and assembled printed circuit boards.
? Provide an accurate, repeatable and rapid method for determining cleanliness on location.
? Provide immediate process control results, negating the need for outside laboratory testing.
? Verify proper cleanliness of surfaces prior to the application of conformal coatings or potting compounds.
? Comply with industrial specifications such as ANSI/J-STD-001 and IPC-TM-650, and are specifically named in MIL-STD-2000A and
MIL-P-28809A.
SCS Ionograph SMD V

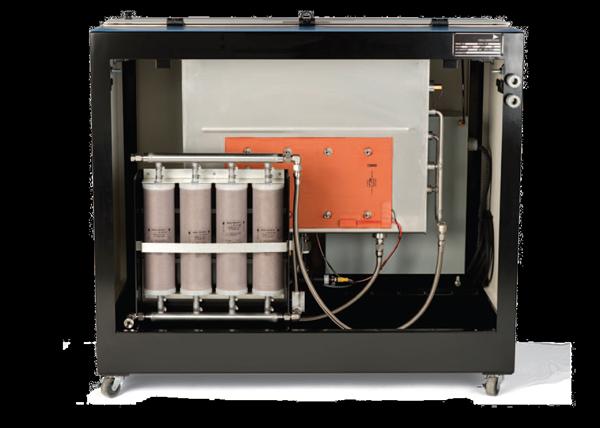

SCS Ionograph SMD V is a floor unit commonly used for larger circuit boards in high-volume production environments. Submerged agitation jets and optional heated extract solution provide outstanding sensitivity, operational efficiency and the ability to test ultra-fine pitch components with ease and accuracy.
The SCS Ionograph SMD V offers users the ability to test components with an optional heated or non-heated test solution. IPC-TM-650 describes the benefit of a heated solution to “accelerate and improve the efficiency of extraction of ionic material from poorly accessible regions, such as under surface-mounted components.” In addition to increasing cleaning efficiency, a heated system also ensures temperature consistency of the test solution, whereas solution temperature in an unheated
system can vary due to circulation pump friction created during the testing process.
The CE-certified SMD V model is available with a convenient onboard all-in-one computer or tablet, providing efficient control and monitoring of the test system using Windows?-based SCS PowerView? software. The system features
easy-access door panels for routine maintenance
of consumable components (e.g., DI columns
and pump filter).

SCS在多種工業領域（包括印制電路板、生產和醫藥工業）為非破壞性過程控制測試提供全范圍的離子測試系統。SCS儀器集團離子污染測試系統是一個設計為快速、準確離子污染清潔度測試的模組組裝系統。每一個模組使用超凈酒精/水萃取介質和專利的動態方式來快速、無破壞性測試產品樣品。

Ionograph SMD-V模組有一臺個人電腦Ionograph SMD-V指令模組操縱來測定是否符合IPC-650和其他工業標準的清潔度需要。他們可用于測量輸入電子元器件和電路板的品質并且可以評估助焊污染和監視表面清潔度。

SMD-V是最多用的測試模組。此模組具有18u‘‘*20u‘‘、20u‘‘*26u‘‘、26u‘‘*30u‘‘和26u‘‘*38u‘‘的測試腔室尺寸，可以依據負載需要操作于部分或全溶液模式。浸入式攪拌噴嘴和溶液加熱器使這種大型測試模組具有卓越的敏感度，高效的工作和輕松準確的測試超細間距元器件的能力。依據ANSI/J-STD001的標準。

SCS在多種工業領域（包括印制電路板、生產和醫藥工業）為非破壞性過程控制測試提供全范圍的離子測試系統。SCS儀器集團離子污染測試系統是一個設計為快速、準確離子污染清潔度測試的模組組裝系統。每一個模組使用超凈酒精/水萃取介質和專利的動態方式來快速、無破壞性測試產品樣品。

Ionograph SMD-V模組有一臺個人電腦Ionograph SMD-V指令模組操縱來測定是否符合IPC-650和其他工業標準的清潔度需要。他們可用于測量輸入電子元器件和電路板的品質并且可以評估助焊污染和監視表面清潔度。

SMD-V是最多用的測試模組。此模組具有18u‘‘*20u‘‘、20u‘‘*26u‘‘、26u‘‘*30u‘‘和26u‘‘*38u‘‘的測試腔室尺寸，可以依據負載需要操作于部分或全溶液模式。浸入式攪拌噴嘴和溶液加熱器使這種大型測試模組具有卓越的敏感度，高效的工作和輕松準確的測試超細間距元器件的能力。依據ANSI/J-STD001的標準。
