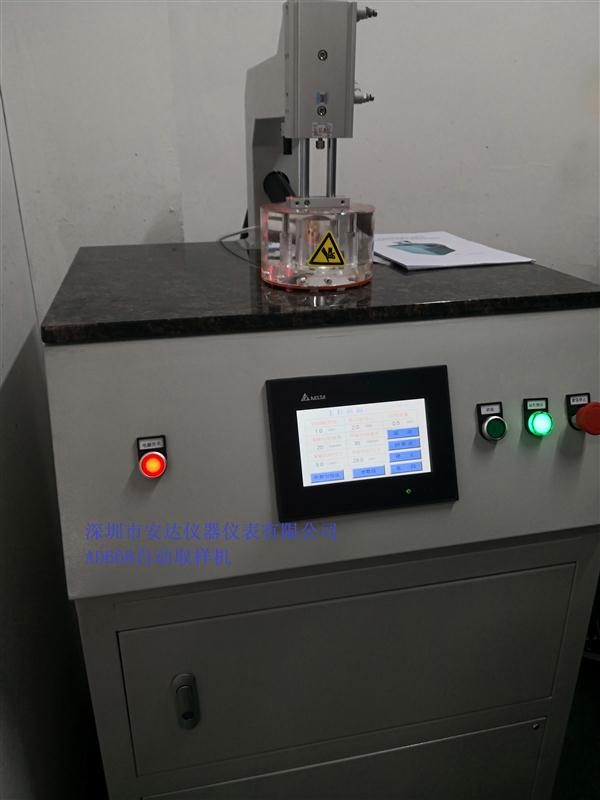

Model No.型號：AD668

Automatic specimen cutting machine for micro section

印制線路板金相切片取樣機（全自動）

Application: PCB factory physical laboratory Metallurgical sample cutting (bare board)

適用范圍：PCB 廠金相實驗室取樣用。（適用于覆銅板即沒有裝配元件的 PCB 板）

Technical parameters 技術參數：

1. Max sample cutting size 最大取樣尺寸: L*W*H=50*50*8mm

2. Min Sample cutting size 最小取樣尺寸: 5*5*8mm

3. Sample size: can be set according to customer requirement (normal size is 20*15mm)

樣品尺寸:   可根據客戶要求設定（一般為 20*15mm）

4.  Max board size: 16”*24” (can take sample at any place of the board)

臺面尺寸 16*24"（能取到 PCB 板的任何位置） 喉深：28cm

5.  Machine spindle spec: 25000r/min/220V/50Hz

取樣機主軸：25000r/min/220V/50Hz

6.  Machine router spec: 1/8” (can change router size according your requirement, but we recommend size is 2.0mm )

取樣機鑼刀：1/8”（自由更換鑼刀，推薦 2.0mm）

7. Router stepping in a method: when the setting is finished, the router gets inside automatically, and when the routing finished, the router automatically go out.

進刀方式：設定好取樣尺寸后自動進刀，直至切片被完全取出

8.  Machine is equipped with vacuum cleaner.

取樣機配備吸塵器

9.  Machine dimension： 680*530*1200mm

取樣機外形：長×寬×高=680×530×1200mm

Model No.型號：AD668

Automatic specimen cutting machine for micro section

印制線路板金相切片取樣機（全自動）

Application: PCB factory physical laboratory Metallurgical sample cutting (bare board)

適用范圍：PCB 廠金相實驗室取樣用。（適用于覆銅板即沒有裝配元件的 PCB 板）

Technical parameters 技術參數：

1. Max sample cutting size 最大取樣尺寸: L*W*H=50*50*8mm

2. Min Sample cutting size 最小取樣尺寸: 5*5*8mm

3. Sample size: can be set according to customer requirement (normal size is 20*15mm)

樣品尺寸:   可根據客戶要求設定（一般為 20*15mm）

4.  Max board size: 16”*24” (can take sample at any place of the board)

臺面尺寸 16*24"（能取到 PCB 板的任何位置） 喉深：28cm

5.  Machine spindle spec: 25000r/min/220V/50Hz

取樣機主軸：25000r/min/220V/50Hz

6.  Machine router spec: 1/8” (can change router size according your requirement, but we recommend size is 2.0mm )

取樣機鑼刀：1/8”（自由更換鑼刀，推薦 2.0mm）

7. Router stepping in a method: when the setting is finished, the router gets inside automatically, and when the routing finished, the router automatically go out.

進刀方式：設定好取樣尺寸后自動進刀，直至切片被完全取出

8.  Machine is equipped with vacuum cleaner.

取樣機配備吸塵器

9.  Machine dimension： 680*530*1200mm

取樣機外形：長×寬×高=680×530×1200mm

Model No.型號：AD668

Automatic specimen cutting machine for micro section

印制線路板金相切片取樣機（全自動）

Application: PCB factory physical laboratory Metallurgical sample cutting (bare board)

適用范圍：PCB 廠金相實驗室取樣用。（適用于覆銅板即沒有裝配元件的 PCB 板）

Technical parameters 技術參數：

1. Max sample cutting size 最大取樣尺寸: L*W*H=50*50*8mm

2. Min Sample cutting size 最小取樣尺寸: 5*5*8mm

3. Sample size: can be set according to customer requirement (normal size is 20*15mm)

樣品尺寸:   可根據客戶要求設定（一般為 20*15mm）

4.  Max board size: 16”*24” (can take sample at any place of the board)

臺面尺寸 16*24"（能取到 PCB 板的任何位置） 喉深：28cm

5.  Machine spindle spec: 25000r/min/220V/50Hz

取樣機主軸：25000r/min/220V/50Hz

6.  Machine router spec: 1/8” (can change router size according your requirement, but we recommend size is 2.0mm )

取樣機鑼刀：1/8”（自由更換鑼刀，推薦 2.0mm）

7. Router stepping in a method: when the setting is finished, the router gets inside automatically, and when the routing finished, the router automatically go out.

進刀方式：設定好取樣尺寸后自動進刀，直至切片被完全取出

8.  Machine is equipped with vacuum cleaner.

取樣機配備吸塵器

9.  Machine dimension： 680*530*1200mm

取樣機外形：長×寬×高=680×530×1200mm
